Packaging

Reel Specifications

Packaging Options

Chaplin Wire exports over 50% of their production and have extensive experience of packing wire for road, sea and air freight.

Wire is available in drum packs, a variety of reel and coils sizes or cut-to-length and straightened according to customer requirements.

Click on a reel code to access the data sheet.

Reel Code Length (A) mm Width (B) mm Bore (C) mm Traverse (D) mm Barrel (E) mm Weight per reel *
Din 100 100 100 16 80 63 1kg
Din 125 125 125 16 100 80 3.5kg
Din 160 160 160 22 128 100 7kg
Din 200 200 200 22 160 125 12kg
SD200K 55 200 52 45 105 7kg
Din 250 200 250 22 / 35 160 160 23kg
Din 300 103 300 52 91 212 15kg
Din 355 200 355 35 160 224 45kg
Din 500 250 500 35 180 315 90kg
Din 560 380 560 127 320 280 250kg
Din 630 430 630 127 380 280 250kg - 450kg
* Guidance for copper alloys, not aluminium

Other reels are available upon request

Other Reels of Wire
Packaging and Reels of Wire

Drum Packs

Drums are available in 400 – 500mm OD and 150mm to 800mm high.

Drum Packs

Coils

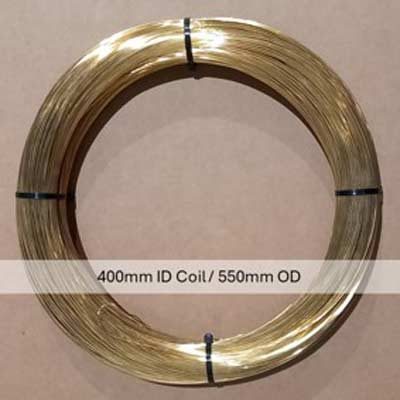

Coils are available with inside diameters from 250mm – 500mm in weights from 1kg to 1000kg depending on wire diameter. Wire can be supplied on steel formers if required.

Different types of coils
Different types of coils
Different types of coils
Different types of coils
